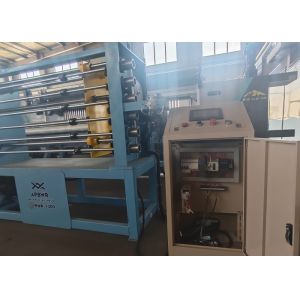

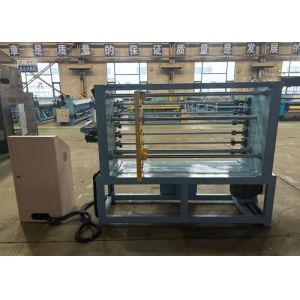

BWR Series CNC/Mechanical Spring Coiling Machine for Gabion Production
The BWR Spring Coiling Machine is a precision-engineered solution designed for high-efficiency manufacturing of spiral springs used in gabion mesh systems. Combining robust mechanical construction with advanced CNC capabilities, this machine delivers exceptional flexibility for both standardized and custom spring production.
Key Technical Specifications:
Mandrel System: 6 hardened steel mandrels × 1200 mm length
Coiling Capacity: Up to 8 concentric coil layers per operation
Dual Control Mode:
CNC Control: Programmable automation for batch production (±0.1 mm repeat accuracy)
Mechanical Control: Manual operation for prototyping/small batches
Wire Compatibility: 2.0–5.0 mm galvanized/stainless steel wire
Performance Advantages:
✓ High-Volume Output: Simultaneous processing on 6 mandrels reduces cycle time by 40% vs. single-head units
✓ Multi-Layer Precision: 8-tier coiling ensures consistent spring compression force for gabion structural integrity
✓ Seamless Mode Switching: Transition between CNC and mechanical control within 15 seconds
✓ Heavy-Duty Construction: Reinforced frame sustains 24/7 operation under 1200 N wire tension
Industry Applications:
Gabion basket connecting springs
Reinforced earth mesh fasteners
Hydraulic erosion control systems
Mining tunnel support assemblies
*Certified compliant with ISO 9001, CE Machinery Directive 2006/42/EC. Operating temperature range: -10°C to 40°C.*
Why Global Manufacturers Choose BWR:
"The dual-control design allows us to handle export orders requiring ISO-traceable CNC production while maintaining flexibility for emergency manual operations during power fluctuations."
– Verified User, Southeast Asia Infrastructure Solutions Ltd.
