Advanced Crimped Wire Mesh Machine for Optimal Efficiency
The crimped mesh making machine for manufacturing chain link fences of different sizes. The wire is taken in from the payoff stand and passed through the dies where the SIZE takes place. Different gap sizes. After passing from the die the pattern wire is automatically thrown on the winding shaft in the stitching process. Once the stitching is complete the woven is manually glided down to enable the next stitch to take place. The chain link is automatically wound to form rolls when the desired length is manufactured.
The machine is controlled by PLC automatic controller, so only one person is needed to operate it.
The crimped mesh making machine adopts automatic rolling mesh machine to make it into rolls. Very easy to operate.
2.Crimped Mesh Making Machine Technical Parameters:
| Product Name | Crimped Wire Mesh Machine |
| Systerm Control | PLC Systerm Control |
| Wire Diameter(mm) | 1.8-4.0 |
| Mesh Size(mm) | 30x30-100x100 |
| Netting width(mm) | 1000-4000 |
| Capacity(m2/hour) | 100-180 |
| Rated Voltage | 380V-3P-50HZ, customized |
| Motor Power | 8.5kw |
| Weight (kg) | 1980 |
| Weight (kg) | 6600*1430* 1600 |
| Accessories | Operation tools 1 set |
3.Crimped Wire Mesh Machine Applications:
Used as an aquaculture fence, fence in coal mine, the stadium fence, the stadium fence net, network training, slope protection, greening around the block, rivers, buildings, residential area of safety protection, workshop warehouse isolation.

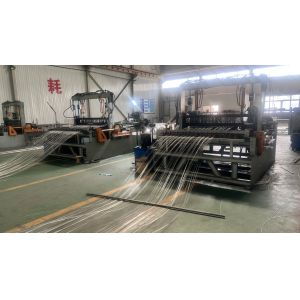

4.Detailed Images:
